The two top cages

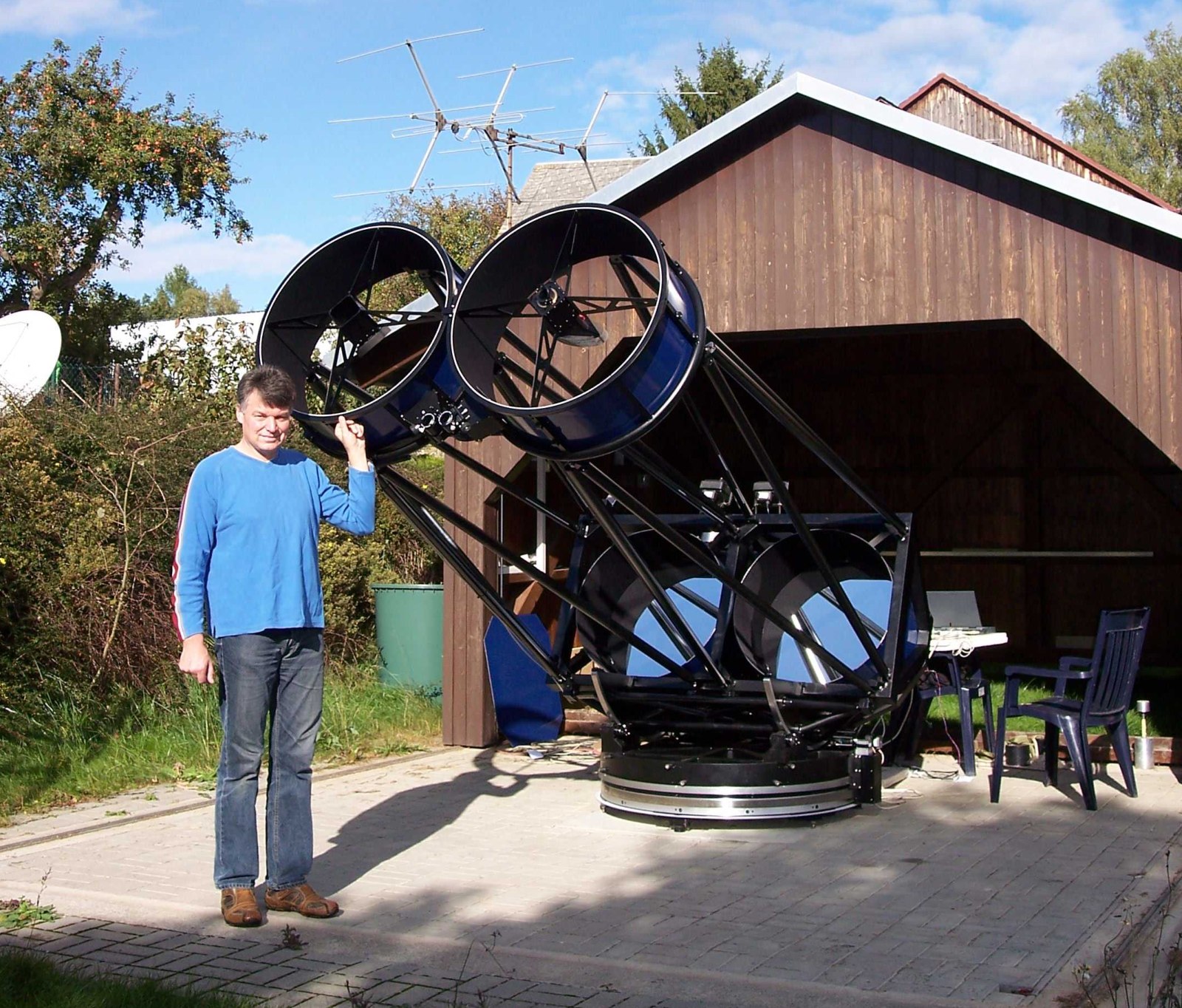

The 28 inch f/4,8 Bino Telescope of Joerg Peters
Text and images from Joerg Peters Copyright © 2013
The mechanics is made completely as an aluminium welded construction. It is a computer controlled Alt/Az telescope with a Dan Gray / Mel Bartels servo controls. To adjust the interpuppilar distance one cage is made rotatable. Congruence of the two light paths can be adjusted comfortably by activating motors at mirror cell, while viewing trough the eyepieces. The mechanical structure is very precise, so that one tube can be used as a photo machine by rotating the secondary. But for this purpose I have to make a field derotator. This is one project for the future, now it’s time for visual observing first.
The advantages of bino telescopes are: Getting the same amount of light into the brain as from an equivalently large mono telescope aperture at a smaller minimal magnification. A much larger celestial area is visible. Two tubes use different seeing cells, which results in much better perception even at poor seeing.

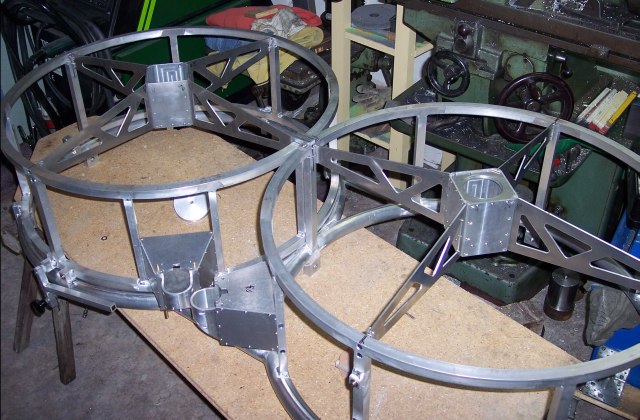

The two top cages

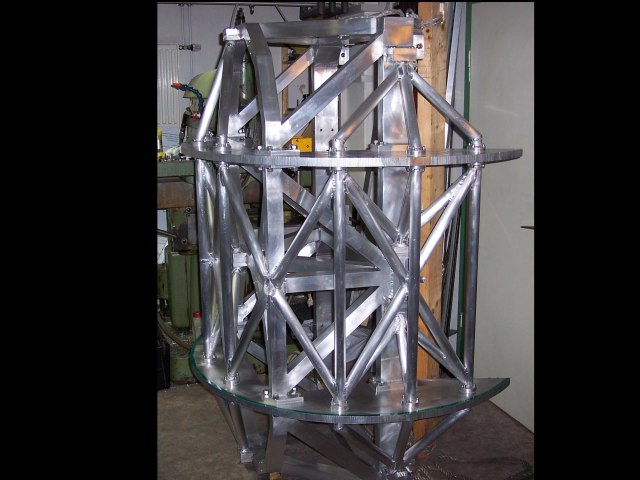

The mirror box

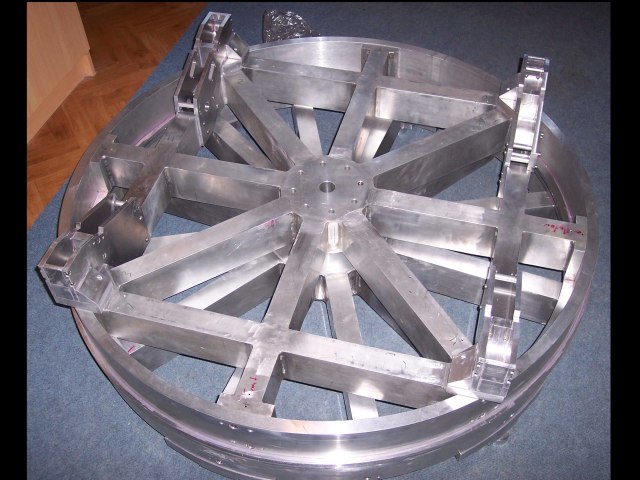

The azimuth turntable

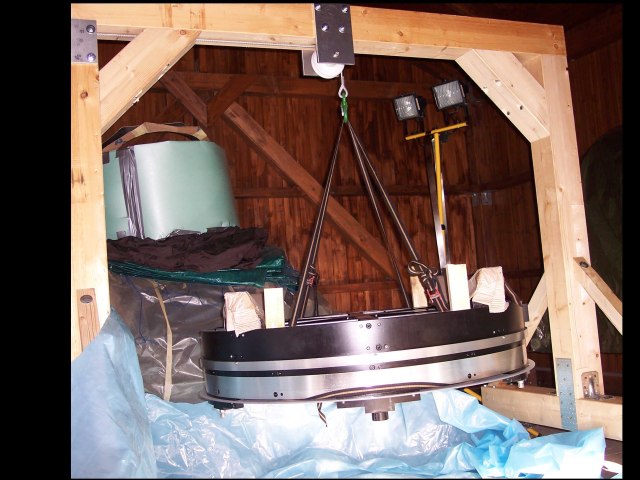

Set up: Placing the azimuth assembly

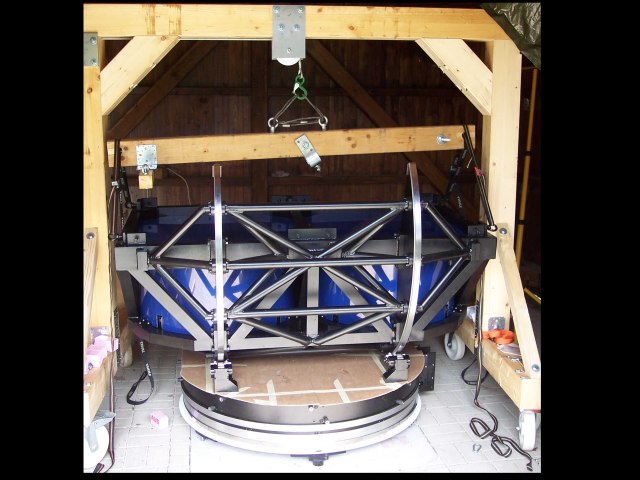

Set up: Positioning the mirror box onto the azimuth turntable
The mirror box as seen from above

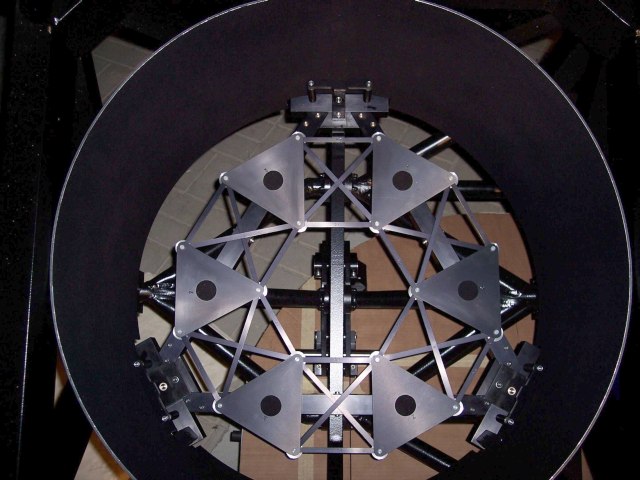

Set up: Inserting the mirrors

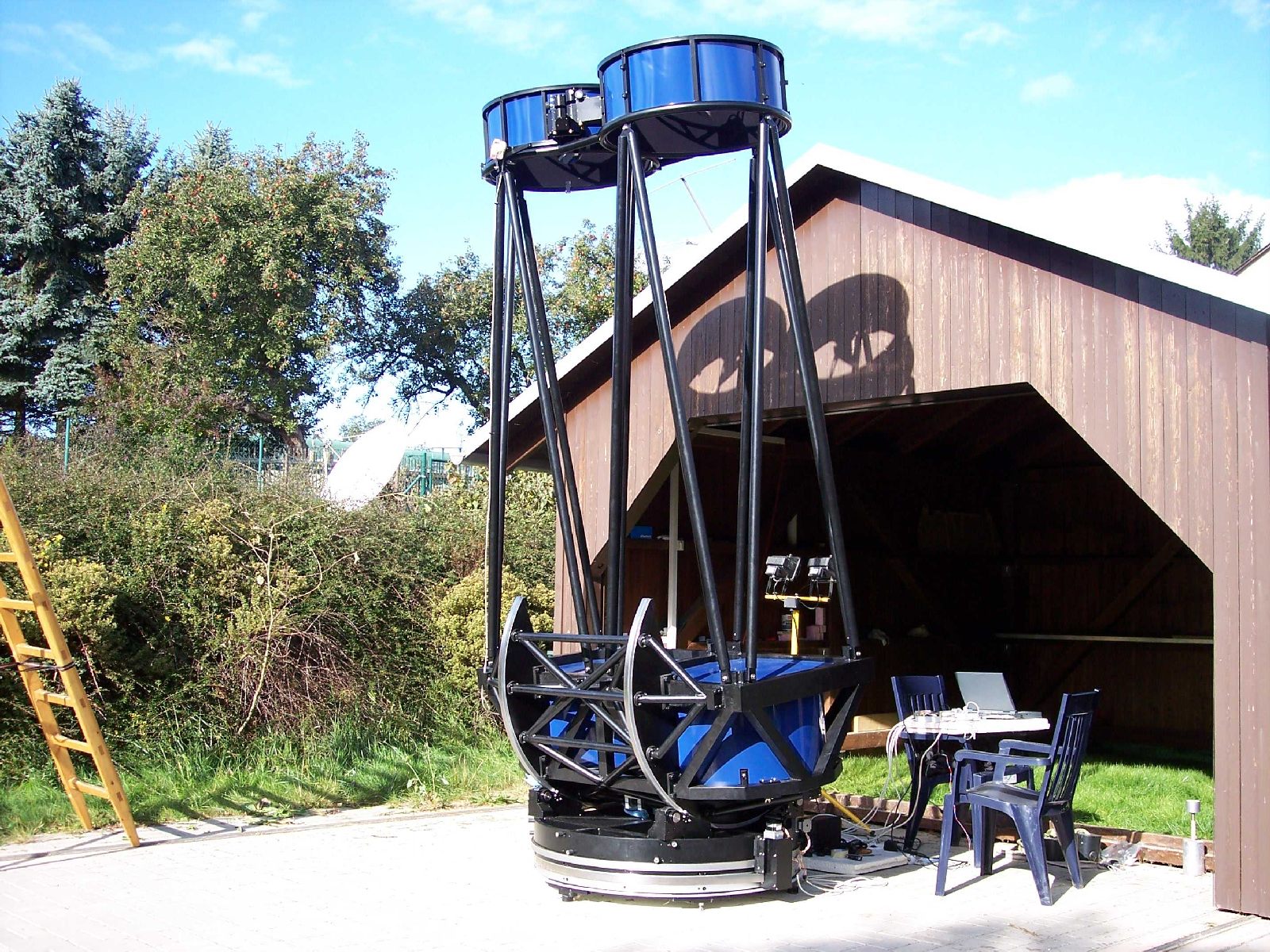

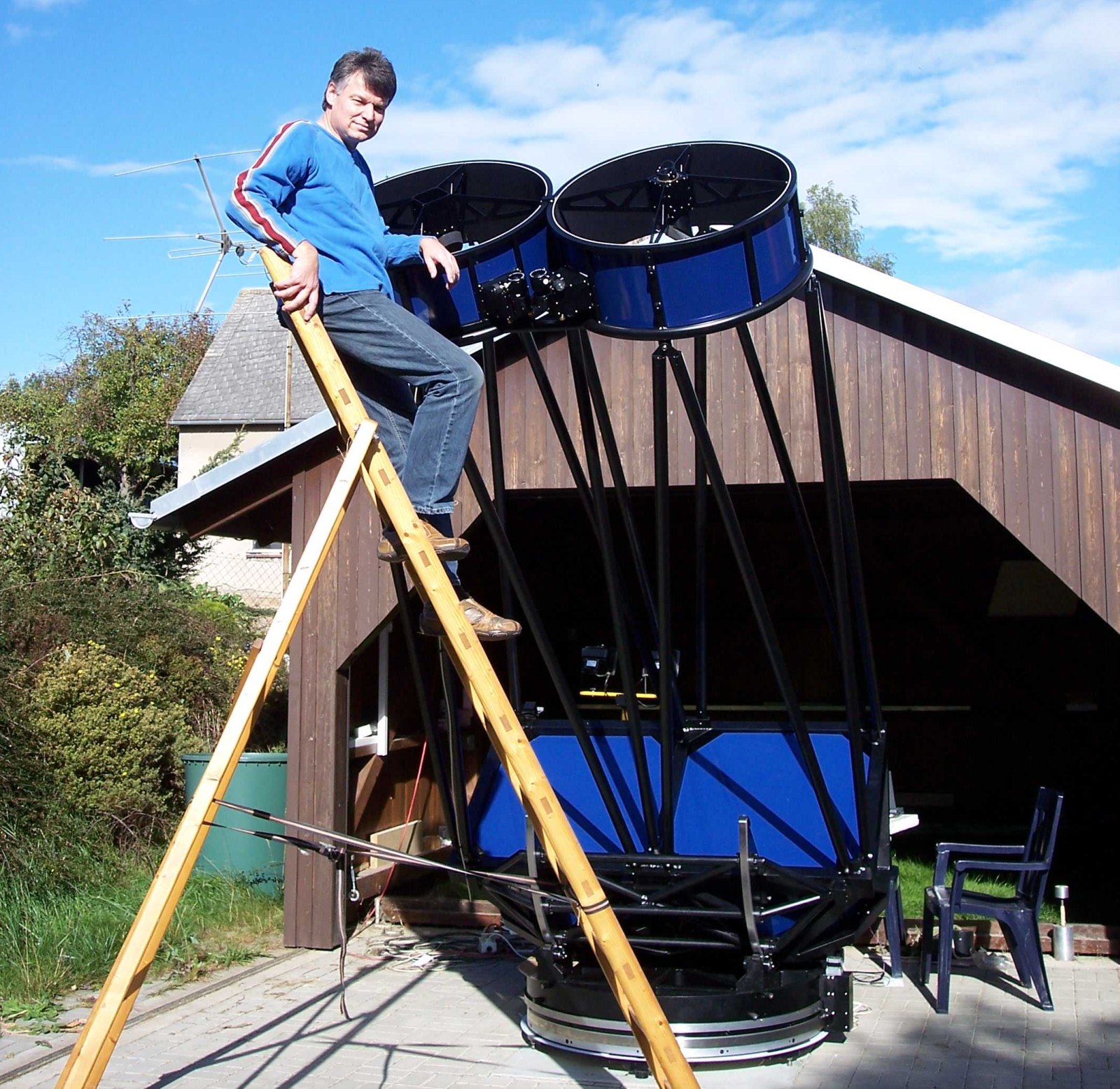

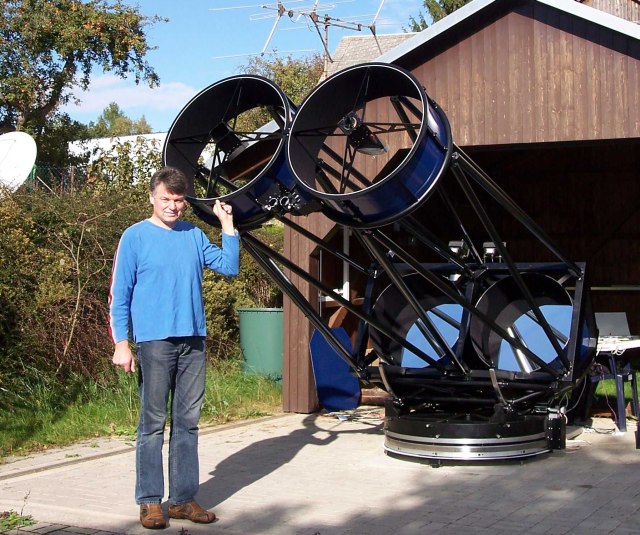

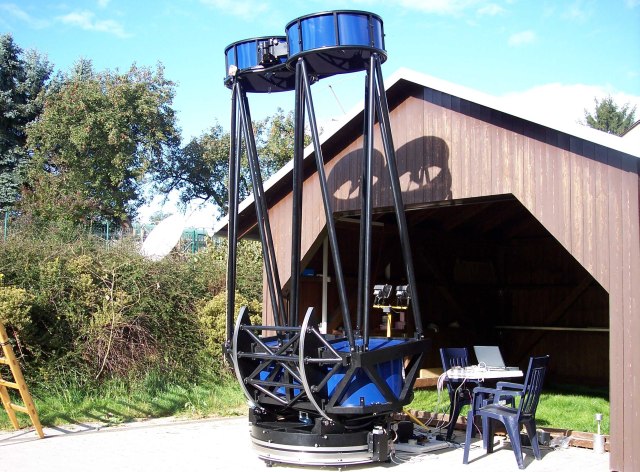

The finished telescope (click on the images for larger views)
